• Rear axle, 3.73 ratio
• Recovery hooks, front, frame-mounted (Available on 2WD 1/2 ton models. Standard on 4x4 1/2 ton models and on all 3/4 ton models.)
• Transfer case, electronic Autotrac with rotary controls (Not available on 2WD models.)
• 4-wheel drive
• Battery, heavy-duty 600 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps (Not available on 1/2 ton models.)
• Trailering equipment, heavy-duty, includes trailering hitch platform, 7-wire harness with independent fused trailering circuits mated to a 7-way sealed connector and (VR4) 2" trailering receiver
• GVWR, 8600 lbs. (3901 kg) (Requires 3/4 ton models.)
• Suspension, front independent with torsion bar (3/4 ton models only.)
• Suspension, rear multi-stage leaf springs (3/4 ton models only)
• Steering, power

• Wheels, 4 - 16" X 6.5" (40.6 cm x 16.5 cm) steel disc (3/4 ton models only.)
• Tires, LT245/75R16E on-/off-road, blackwall (Standard on 4WD 3/4 ton models. Available on 2WD 3/4 ton models.)
• Tire, spare LT245/75R16 all-season, blackwall (3/4 ton models only. Upgradeable to (4GK) LT245/75R16E on-/off-road, blackwall spare tire.)
• Wheel, 16" (40.6 cm) full-size spare (3/4 ton models only.)
• Tire carrier, lockable outside spare, winch-type mounted under frame at rear
• Luggage rack side rails, roof-mounted, Black
• Fascia, front color-keyed
• Fascia, rear color-keyed
• Assist steps, Black
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Daytime Running Lamps, with automatic exterior lamp control
• Mirrors, outside heated power-adjustable, manual-folding (Mirror caps are Black.)
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver- and front passenger-side glass)
• Wiper, rear intermittent with washer
• Door handles, Black
• Body, liftgate with liftglass, rear door system with rear-window wiper/washer

• Audio system, AM/FM stereo with MP3 compatible CD player seek-and-scan, digital clock, auto-tone control, Radio Data System (RDS), speed-compensated volume, TheftLock and auxiliary audio input jack.
• XM Satellite Radio, delete
• Audio system feature, 8-speaker system

• Seats, front 40/20/40 split-bench with Custom Cloth, 3-passenger, includes (AG1) 6-way power driver seat adjuster, (AM1) driver manual lumbar control, driver and front passenger manual reclining, center fold-down armrest with storage, lockable storage compartments in seat cushion (includes auxiliary power outlet), adjustable outboard head restraints and storage pockets
• No third row seat
• Seats, second row 60/40 split-folding bench 3-passenger with center armrest
• Floor covering, Black rubberized-vinyl (Required with (AZ3) front 40/20/40 split-bench seat with vinyl or SEO (9S1) vinyl bucket seats.)
• Steering wheel, vinyl
• Warning tones, headlamp on, key-in-ignition, driver and right-front passenger safety belt unfasten and turn signal on
• Tire Pressure Monitoring System (does not apply to spare tire)
• Windows, power with driver Express-Down and lockout features
• Door locks, power programmable with lockout protection
• Remote vehicle starter prep package, includes Remote Keyless Entry (Remote vehicle starter fob available through GM Accessories.)
• Cruise control, electronic with set and resume speed
• Theft-deterrent system, vehicle, PASS-Key III
• Heater, rear auxiliary with rear passenger heating ducts
• Air conditioning, dual-zone manual climate control with individual climate settings for driver and right-front passenger
• Air conditioning, rear auxiliary
• Defogger, rear-window electric
• Power outlets, 3 auxiliary, 12-volt, includes 2 on the instrument panel and 1 in the cargo area
• Mirror, inside rearview auto-dimming with 8-point compass and outside temperature display
• Headliner, cloth
• Visors, driver and front passenger illuminated vanity mirrors, padded with cloth trim, extends on rod
• Assist handles, front passenger and second row outboard
• Lighting, interior with dome light, driver- and passenger-side door switch with delayed entry feature, cargo lights, door handle or Remote Keyless Entry-activated illuminated entry and map lights in front and second seat positions
• Fleet Package

• StabiliTrak, stability control system with Proactive Roll Avoidance
• Brakes, 4-wheel antilock, 4-wheel disc with hydroboost (3/4 ton models only.)
• OnStar, 1-year of Safe and Sound plan. Includes Automatic Notification of Air Bag Deployment, Stolen Vehicle Location Assistance, Emergency Services, Roadside Assistance, Remote Door Unlock, OnStar Vehicle Diagnostics, Hands-Free Calling, AccidentAssist and Remote Horn & Lights (OnStar services require vehicle electrical system (including battery), wireless service and GPS satellite signals to be available and operating for features to function properly. OnStar acts as a link to existing emergency service providers. Stolen Vehicle Location Assistance and Remote Door Unlock success varies with conditions. OnStar Vehicle Diagnostics available on most 2004 MY and newer GM vehicles. Diagnostic capability varies by model. Visit onstar.com or call 1-888-466-7827 for system limitations and details.)
• Air bags, dual-stage frontal, driver and right-front passenger with Passenger Sensing System (right-front passenger air bag status on overhead console) (Always use safety belts and the correct child restraints for your childs age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Air bags, head curtain side-impact, first and second row outboard seating positions with rollover sensor, includes third row seating positions with (AS3) 3-passenger third row 50/50 split-bench seat or (AW2) 2-passenger third row 50/50 split-bench seat (Head curtain side air bags are designed to help reduce the risk of head and neck injuries to front and rear seat occupants on the near side of certain side-impact collisions. Always use safety belts and the correct child restraints for your childs age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicles Owners Manual and child safety seat instructions for more safety information.)
• Safety belts, 3-point, driver and right-front passenger
• LATCH system (Lower Anchors and Top tethers for CHildren), for child safety seats

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI

• (352 hp [262.5 kW] @ 5400 rpm
• 383 lb-ft of torque [517.1 N-m] @ 4300 rpm) (STD)

• AIR CLEANER HIGH-CAPACITY
• DIFFERENTIAL HEAVY-DUTY LOCKING REAR
• SKID PLATE PACKAGE includes front underbody shield starting behind front bumper and running to first cross-member protecting front underbody oil pan differential case and transfer case frame-mounted shields
• SEATS SECOND ROW 60/40 SPLIT-FOLDING BENCH 3-passenger with center armrest (STD)
• BATTERY SINGLE 730 CCA Provides a 730 CCA HD cranking battery replacing the standard 600 CCA battery.
• EBONY CUSTOM CLOTH SEAT TRIM
• FLOOR CONSOLE DELETE Deletes the floor console and associated audio equipment that is included with custom cloth high back bucket seats. All exposed floor areas will remain untrimmed.
• SEATS SECOND ROW 60/40 SPLIT-FOLDING BENCH with vinyl 3-passenger with center armrest
• TIRES LT245/75R16E ON-/OFF-ROAD BLACKWALL (STD)
• LUGGAGE RACK DELETE
• TIRE SPARE LT245/75R16E ON-/OFF-ROAD BLACKWALL
• SEATS FRONT BUCKET with (AG1) 6-way power driver and (AG2) front passenger seat adjusters adjustable head restraints (AM1) driver manual lumbar control floor console and rear storage pockets
• BLACK
• FOG LAMPS FRONT HALOGEN
• TRANSMISSION 6-SPEED AUTOMATIC HEAVY-DUTY ELECTRONICALLY CONTROLLED with overdrive and tow/haul mode
• MIRRORS OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL CAMPER MANUAL-FOLDING AND EXTENSION with integrated turn signal indicators
• COMMERCIAL PREFERRED EQUIPMENT GROUP Includes Standard Equipment
• REAR AXLE 3.73 RATIO (STD)
• ENGINE VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI (352 hp [262.5 kW] @ 5400 rpm 383 lb-ft of torque [517.1 N-m] @ 4300 rpm) (STD)
• WHEELS 4 - 16 X 6.5 (40.6 CM X 16.5 CM) STEEL DISC (STD)
• SEATS 2ND ROW VINYL WITH FRONT CLOTH SEATS Provides vinyl middle rear seats and cloth front seats.
• AUDIO SYSTEM AM/FM STEREO WITH MP3 COMPATIBLE CD PLAYER seek-and-scan digital clock auto-tone control Radio Data System (RDS) speed-compensated volume TheftLock and auxiliary audio input jack. (STD)
• Tow Hooks
• Four Wheel Drive
• Tow Hitch
• Power Steering
• Steel Wheels
• Tires - Front On/Off Road
• Tires - Rear On/Off Road
• Conventional Spare Tire
• Conventional Spare Tire
• Running Boards/Side Steps
• Automatic Headlights
• Daytime Running Lights
• Automatic Headlights
• Heated Mirrors
• Power Mirror(s)
• Privacy Glass
• Intermittent Wipers
• AM/FM Stereo
• CD Player
• MP3 Capability
• Auxiliary Audio Input
• Power Driver Seat
• Cloth Seats
• Split Bench Seat
• Power Outlet
• Driver Adjustable Lumbar
• Pass-Through Rear Seat
• Rear Bench Seat
• Adjustable Steering Wheel
• Tire Pressure Monitor
• Power Windows
• Power Door Locks
• Keyless Entry
• Power Door Locks
• Cruise Control
• Immobilizer
• Multi-Zone A/C
• A/C
• A/C
• Rear A/C
• Rear Defrost
• Power Outlet
• Auto-Dimming Rearview Mirror
• Driver Vanity Mirror
• Passenger Vanity Mirror
• Driver Illuminated Vanity Mirror
• Passenger Illuminated Visor Mirror
• Front Reading Lamps
• Rear Reading Lamps
• Traction Control
• Stability Control
• ABS
• 4-Wheel Disc Brakes
• Telematics
• Requires Subscription
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag Sensor
• Front Head Air Bag
• Rear Head Air Bag

• Vehicle
• Rear Door Type: Liftgate
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 145
• Cooling System
• Total Cooling System Capacity (qts): 17.8
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4180
• Gross Axle Wt Rating - Rear (lbs): 5500
• Curb Weight - Front (lbs): 3239
• Curb Weight - Rear (lbs): 3006
• Gross Vehicle Weight Rating Cap (lbs): 8600
• Gross Combined Wt Rating (lbs): 16,000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9300
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1110
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Leaf springs
• Spring Capacity - Front (lbs): 4500
• Spring Capacity - Rear (lbs): 5500
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-floating
• Axle Capacity - Front (lbs): 4500
• Axle Capacity - Rear (lbs): 6000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 1.38
• Shock Absorber Diameter - Rear (mm): 1.38
• Stabilizer Bar Diameter - Front (in): 1.40
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.0 x 1.18
• Rear Brake Rotor Diam x Thickness (in): 13.5 x 0.79
• Tires
• Front Tire Order Code: QIW
• Rear Tire Order Code: QIW
• Spare Tire Order Code: ZIZ
• Front Tire Size: LT245/75R16E
• Rear Tire Size: LT245/75R16E
• Spare Tire Size: LT245/75R16
• Front Tire Capacity (lbs): 2104
• Rear Tire Capacity (lbs): 2104
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 16 x 6.5
• Rear Wheel Size (in): 16 x 6.5
• Spare Wheel Size (in): 16 x - TBD -
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 45.3
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 39
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 130.0
• Length, Overall w/rear bumper (in): 222.4
• Width, Max w/o mirrors (in): 79.1
• Height, Overall (in): 76.8
• Overhang, Front (in): - TBD -
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 32.6
• Ground Clearance, Front (in): 10.5
• Ground Clearance, Rear (in): 9.1
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): 101.8
• Cargo Area Length @ Floor to Seat 2 (in): 69.6
• Cargo Area Length @ Floor to Seat 3 (in): 35.6
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 49.1
• Cargo Box (Area) Height (in): 41.4
• Cargo Volume to Seat 1 (ft³): 137.4
• Cargo Volume to Seat 2 (ft³): 90.0
• Cargo Volume to Seat 3 (ft³): 45.8
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.3
• Front Hip Room (in): 64.4
• Second Head Room (in): 38.5
• Second Leg Room (in): 39.5
• Second Shoulder Room (in): 65.2
• Second Hip Room (in): 61.8
• Third Head Room (in): 38.1
• Third Leg Room (in): 34.9
• Third Shoulder Room (in): 64.7
• Third Hip Room (in): 49.4
• Summary

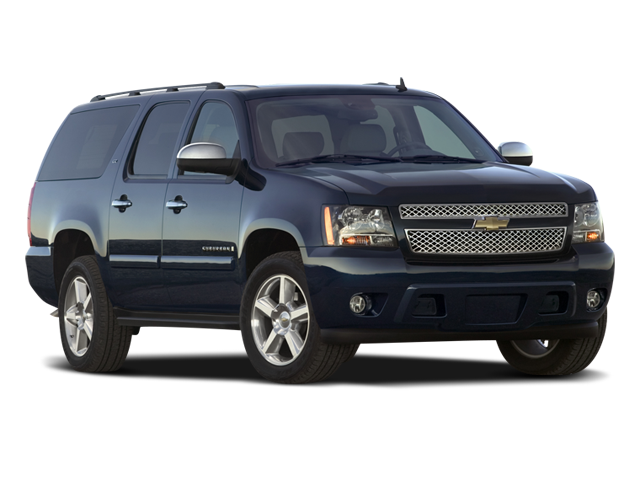

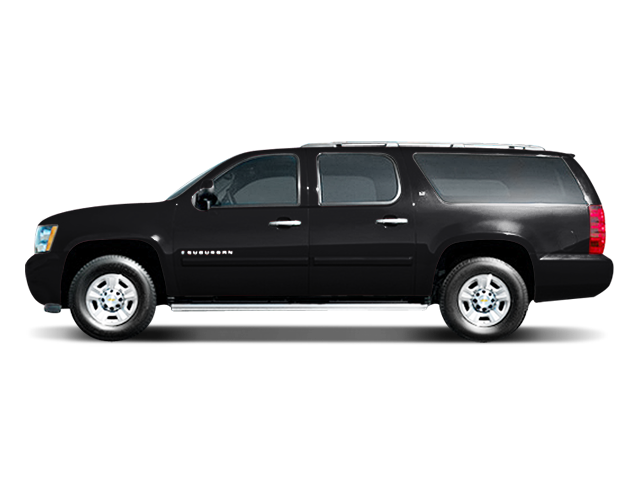

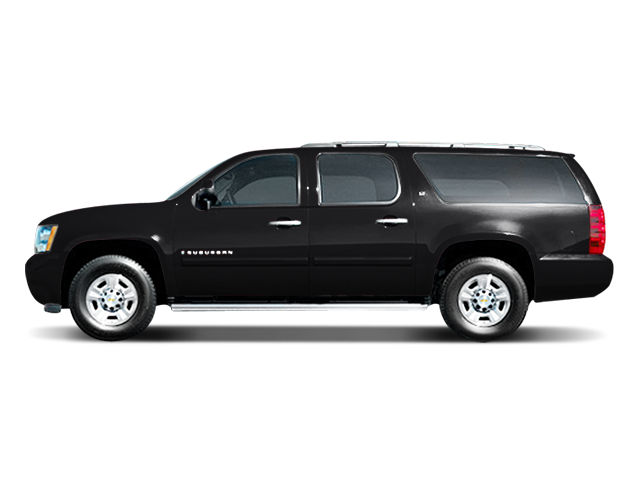

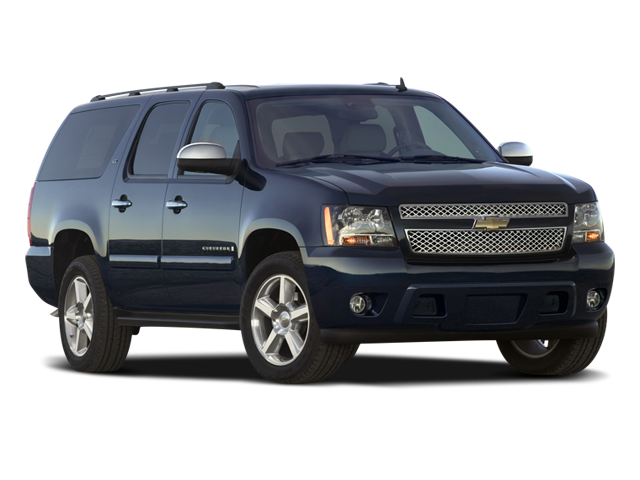

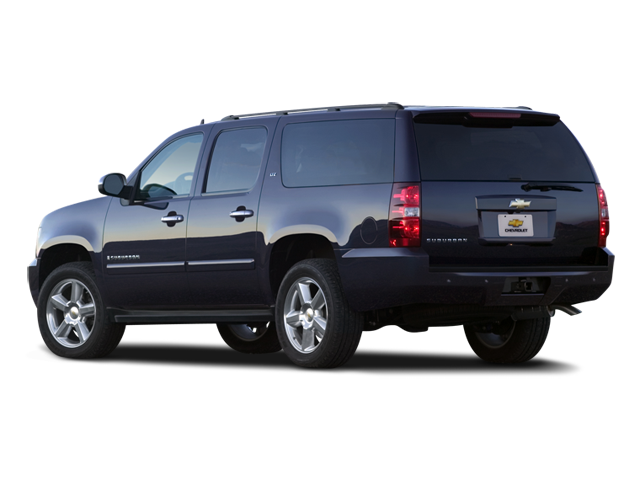

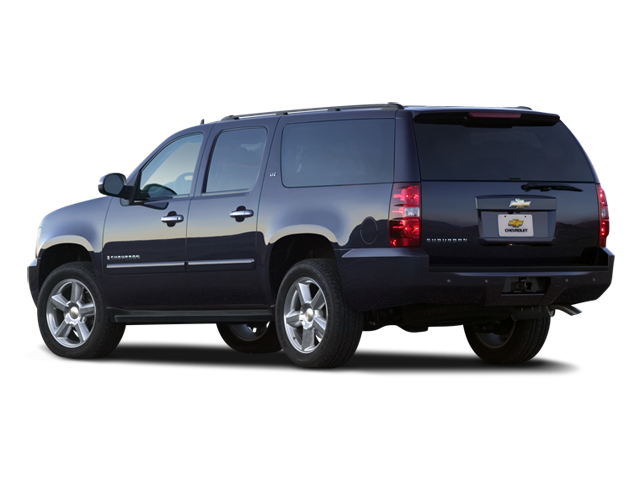

• Vehicle Name: Chevrolet Suburban
• Body Style: 4 Door 2500
• Body Code: E52
